Run15 pp 200GeV TOF3*VPD trigger
Motivation:
run 15 pp 200GeV
run number:
16085033
16085035
16085036
16085037
Production: fastoffline
Check the trigger TOF3*VPDMB-30
TOF3: tofmult>63
trigger id: 60
trigger detail: http://online.star.bnl.gov/RTS/production/triggerApp.php?screen=disptriggers&tid=60&versions=897-809
For physics motiviation:
https://drupal.star.bnl.gov/STAR/system/files/HighMultiTrig_150313YL.pdf
For run12 pp 200 GeV MinBias and TOF high multiplicity QA plots:
https://drupal.star.bnl.gov/STAR/system/files/HighMultiTrig_150324YL.pdf
QA plot:

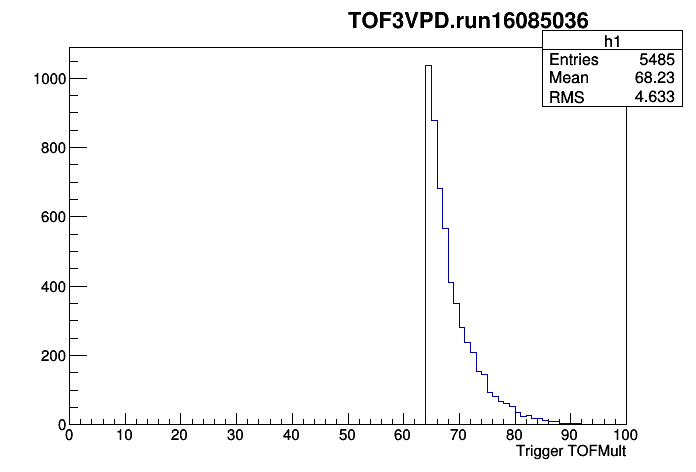

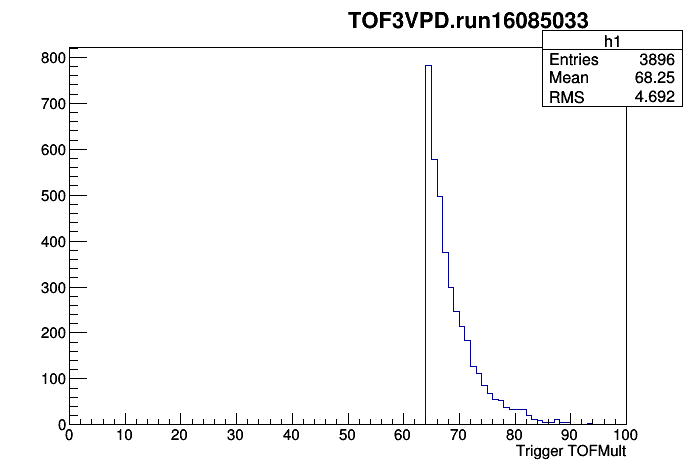

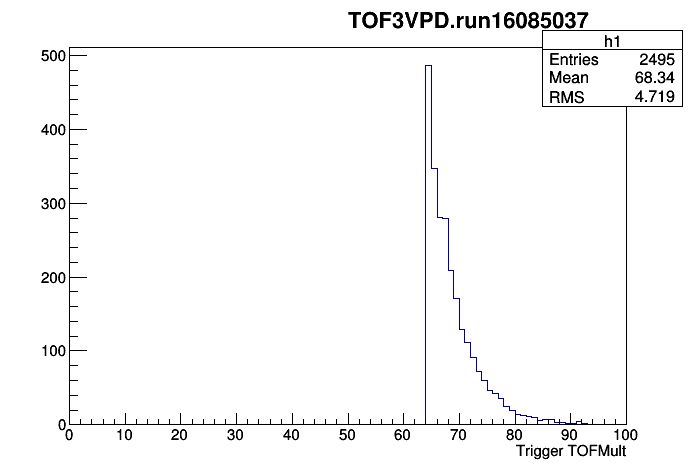

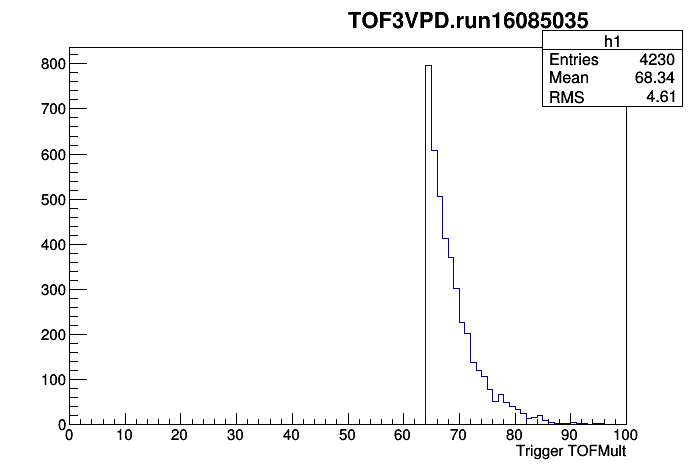

1. tofmult (trigger)
![]() |
![]() |
![]() |
![]() |

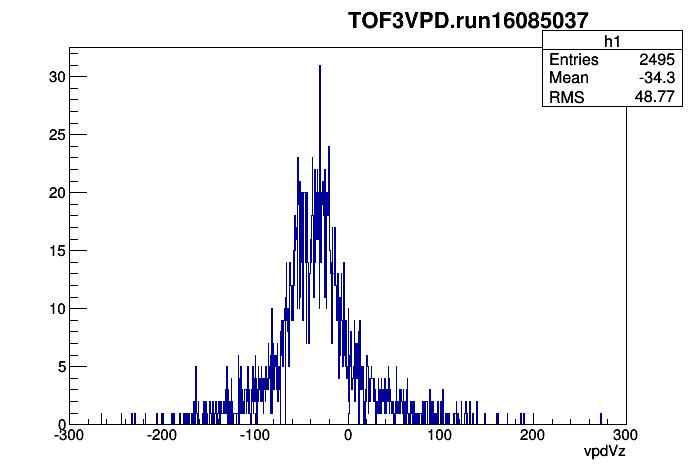

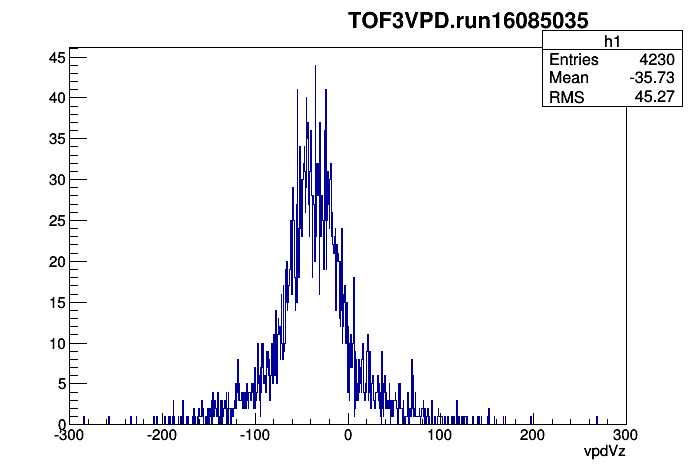

2. vpdVz
![]() |
![]() |
![]() |
![]() |
vpdVz is shifted.

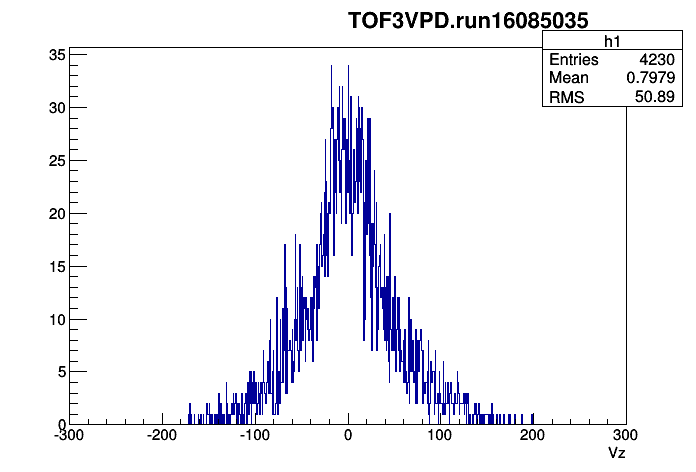

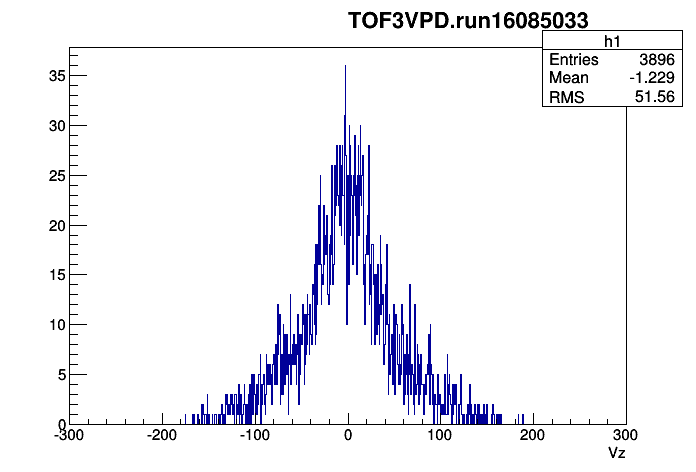

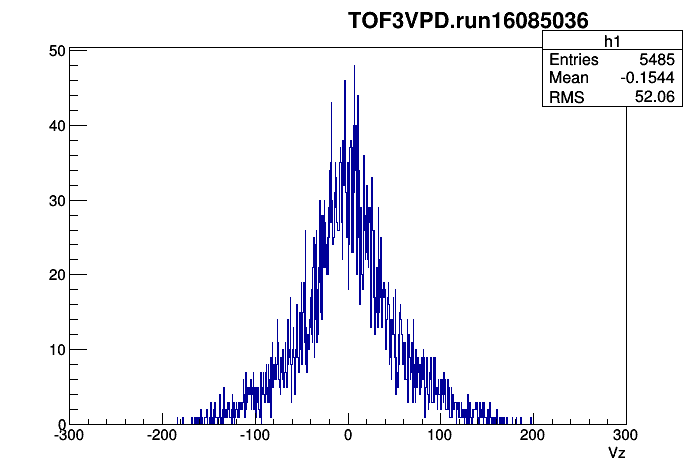

3. Vz
![]() |
![]() |
![]() |
![]() |

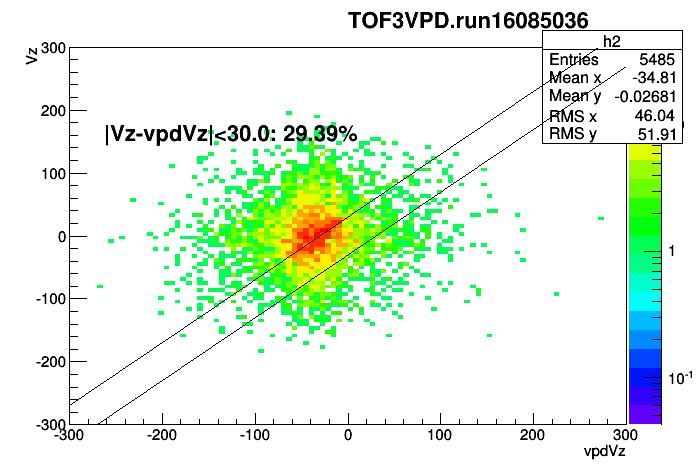

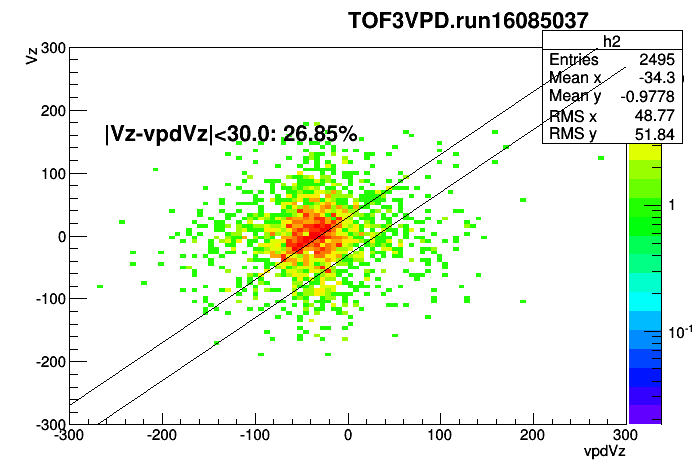

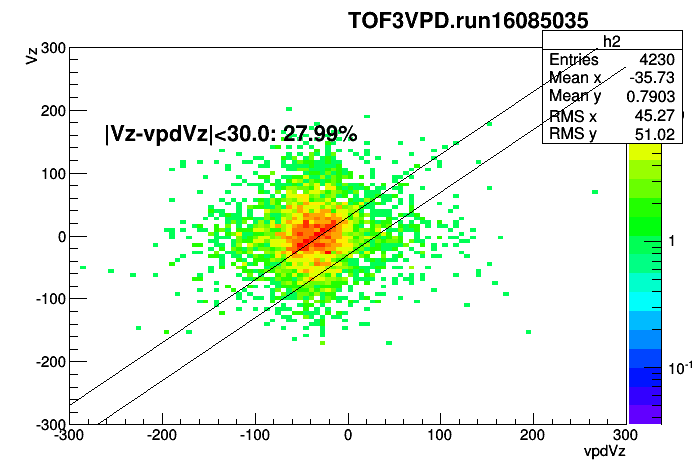

4. Vz vs vpdVz
![]() |
![]() |
![]() |
![]() |

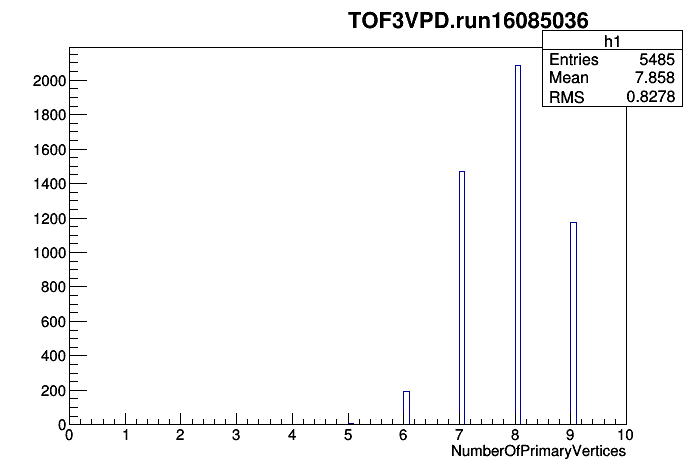

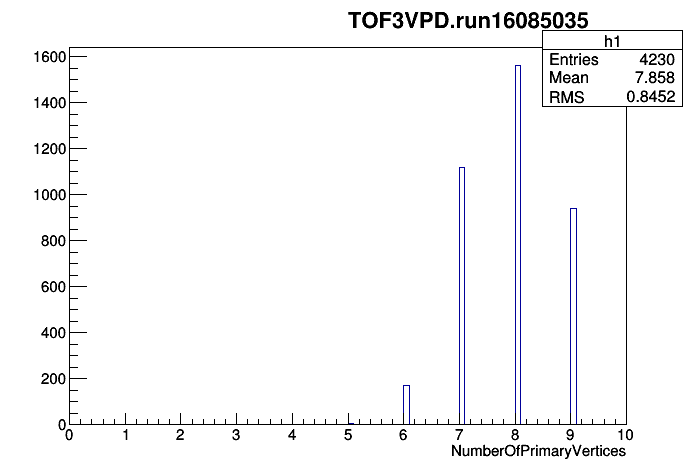

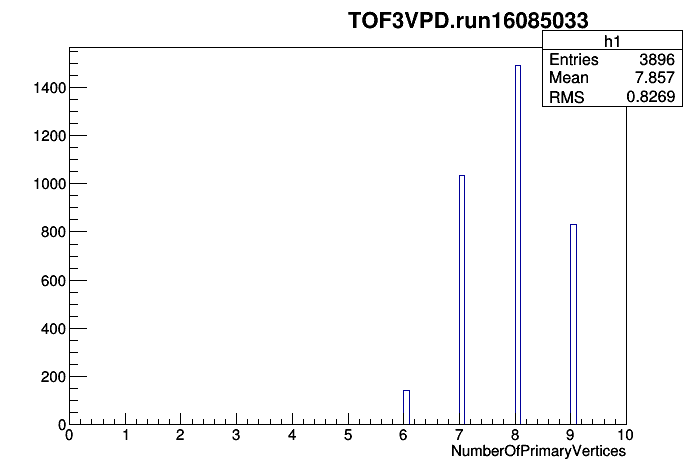

5. Number of primary vertex
![]() |
![]() |
![]() |
![]() |

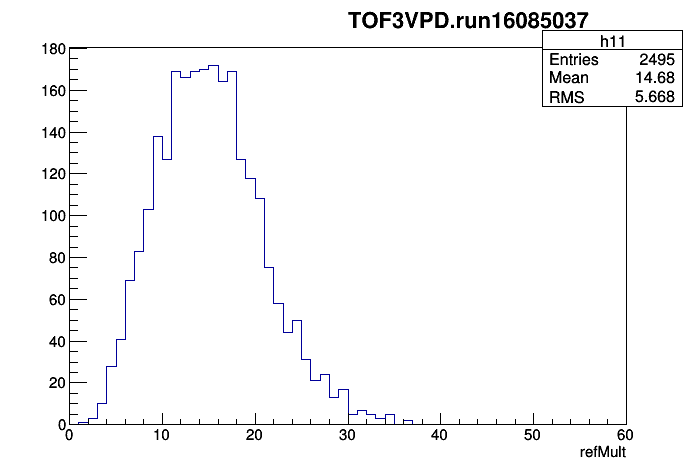

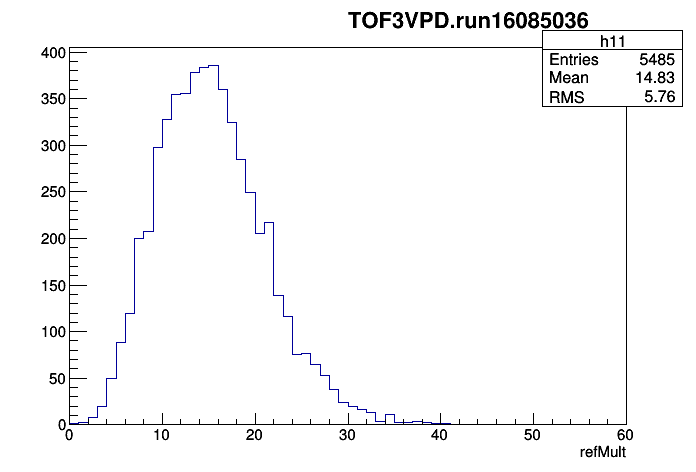

6. refMult
![]() |
![]() |
![]() |
![]() |

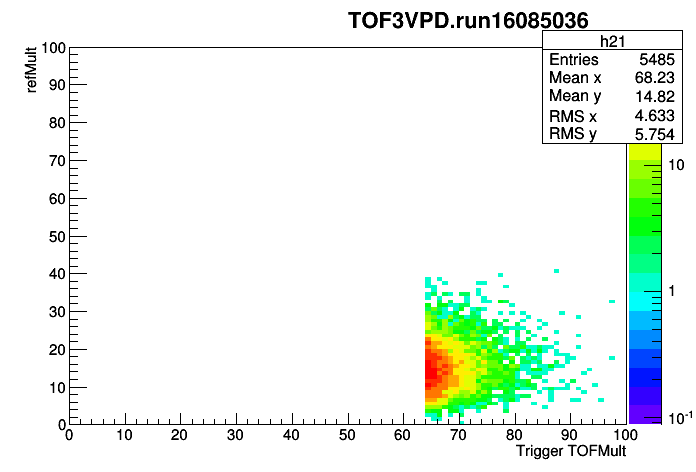

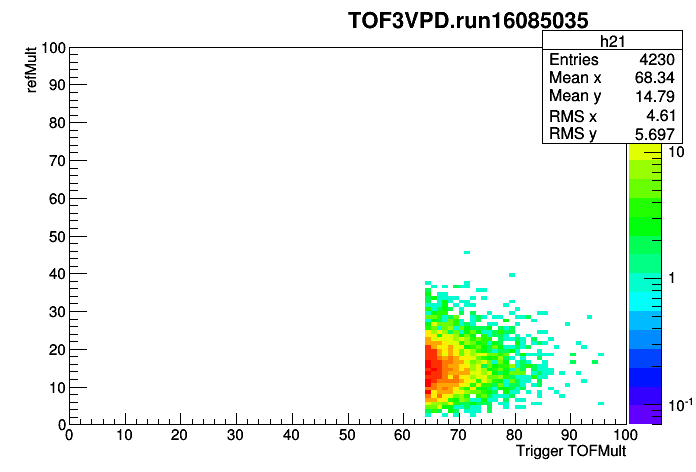

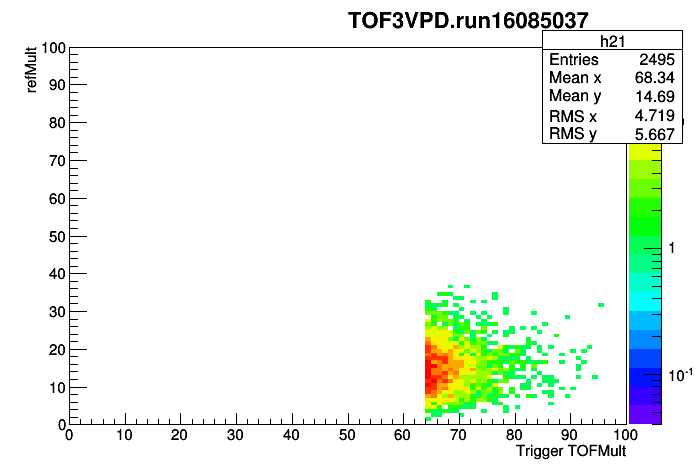

7. refMult vs tofmult (trigger)
![]() |
![]() |
![]() |
![]() |

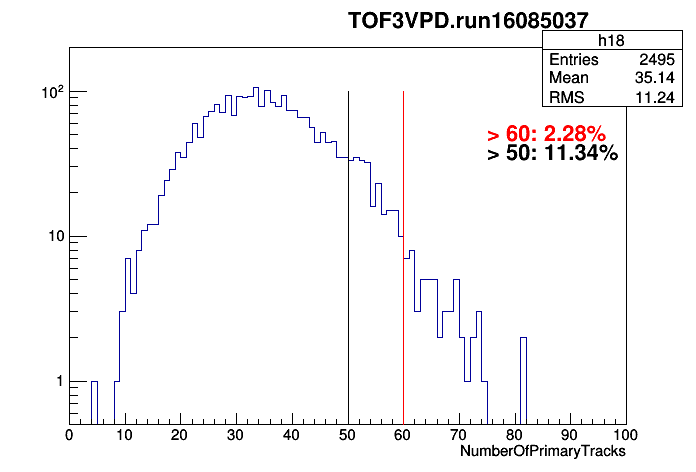

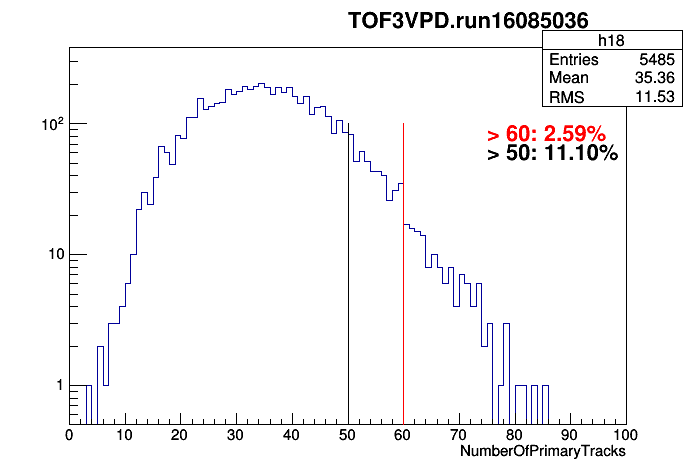

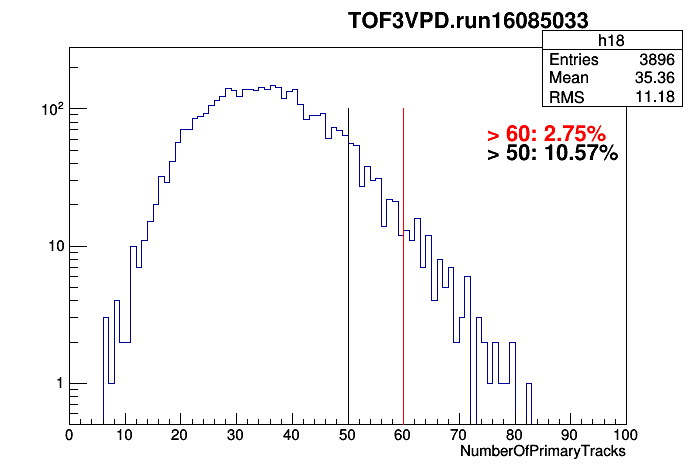

8. Number of Primary tracks
![]() |
![]() |
![]() |
![]() |

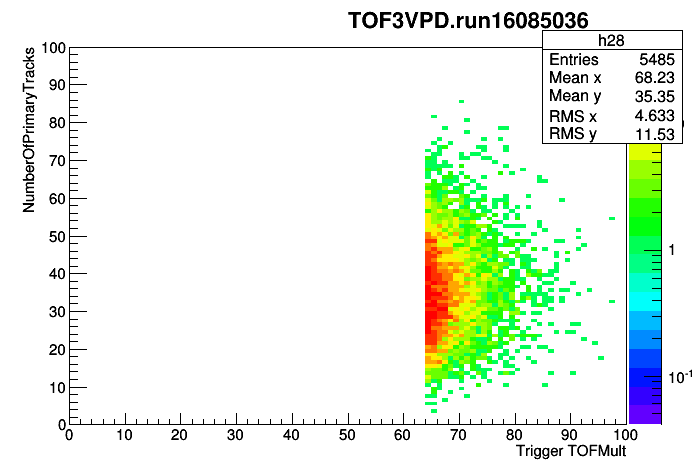

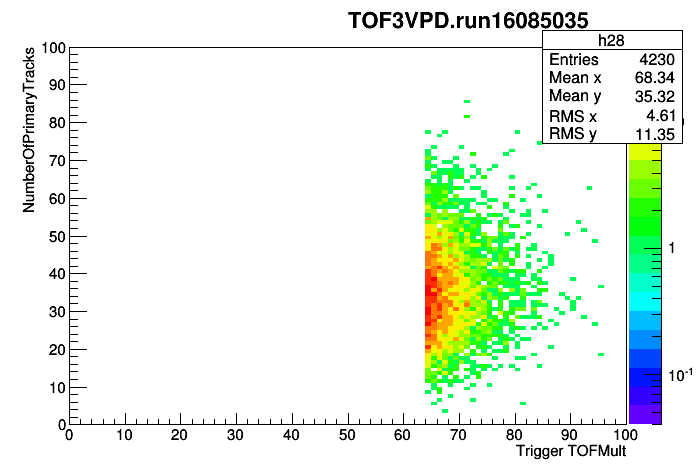

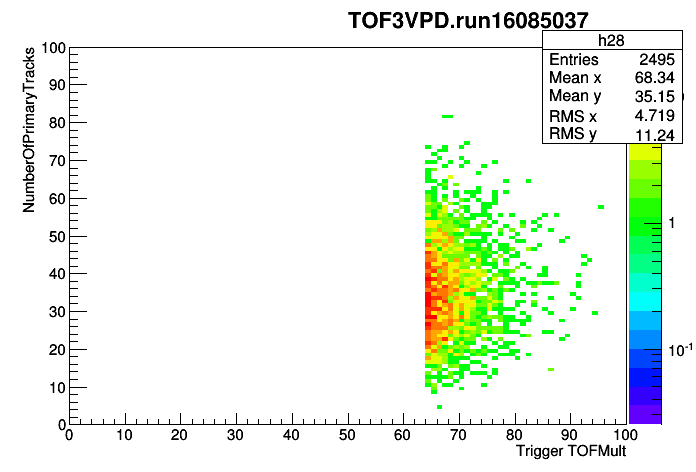

9. Number of Primary tracks vs tofmult (trigger)
![]() |
![]() |
![]() |
![]() |

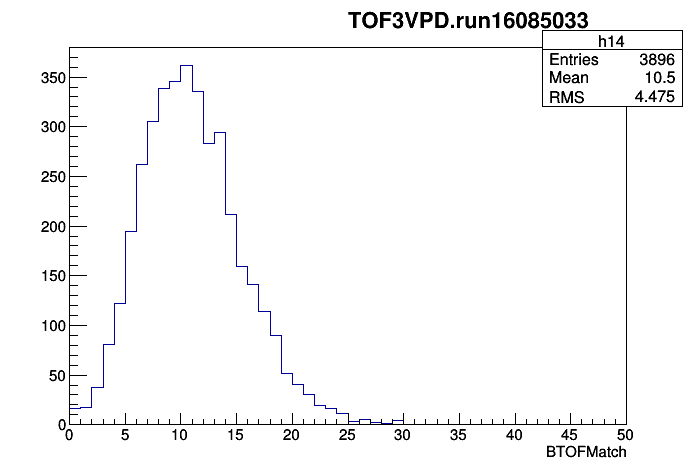

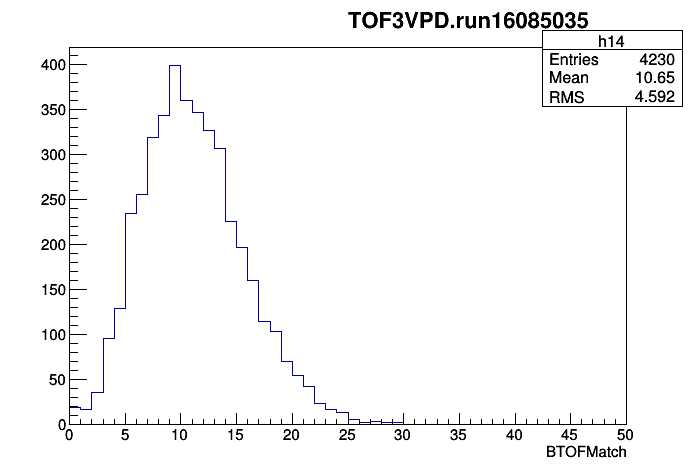

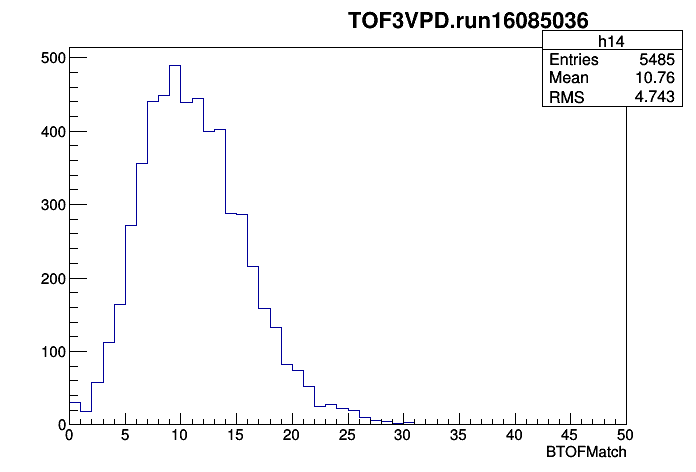

10. BTOFMatch (number of matched TPC tracks to TOF hits)
![]() |
![]() |
![]() |
![]() |

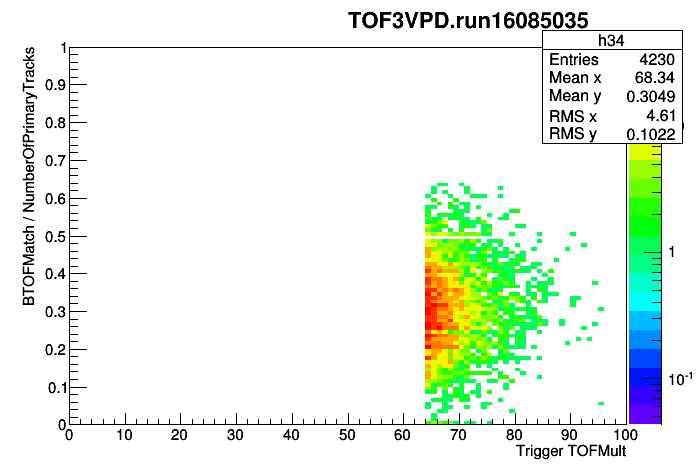

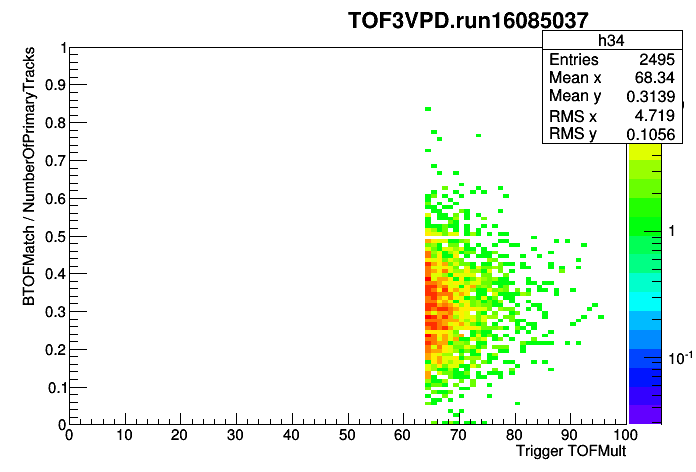

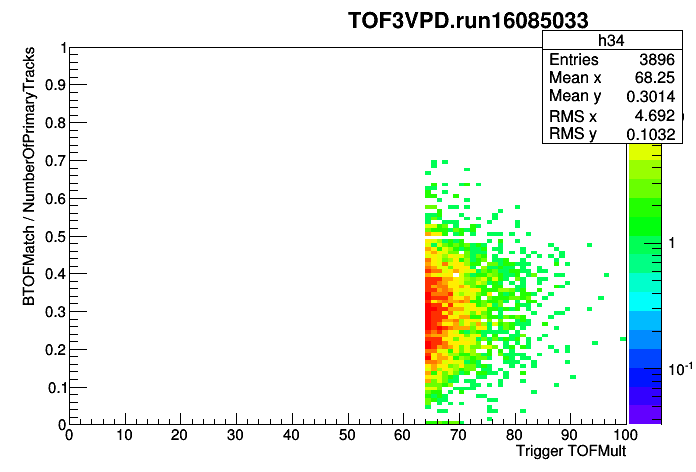

11. ratio of BTOFMatch and Number of Primary Tracks vs tofmult (trigger)
![]() |
![]() |
![]() |
![]() |

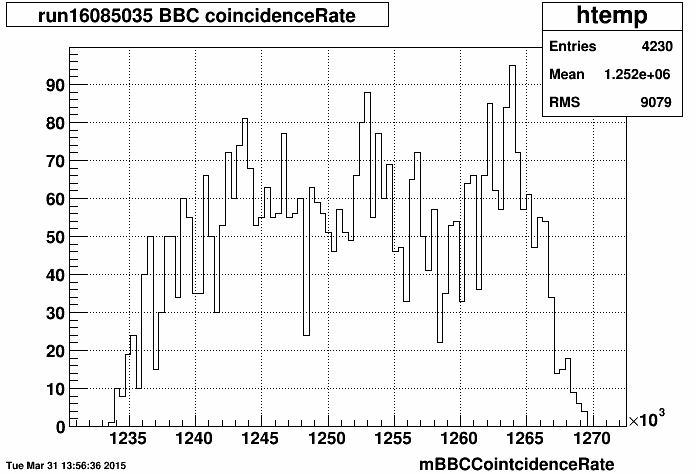

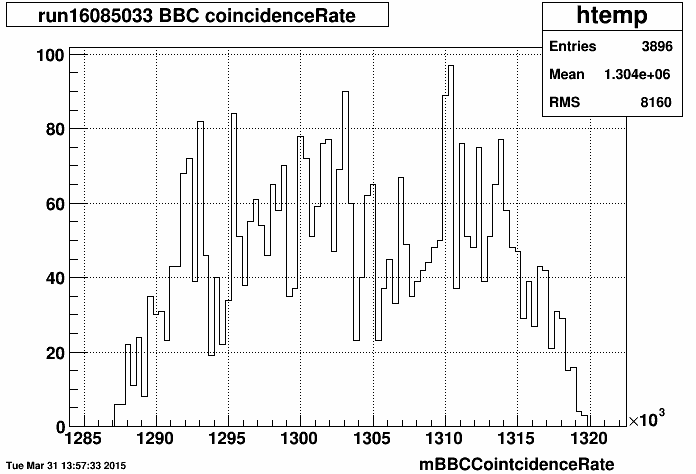

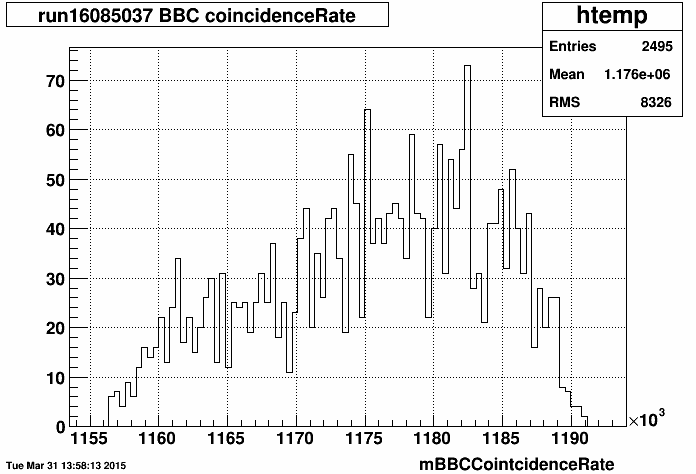

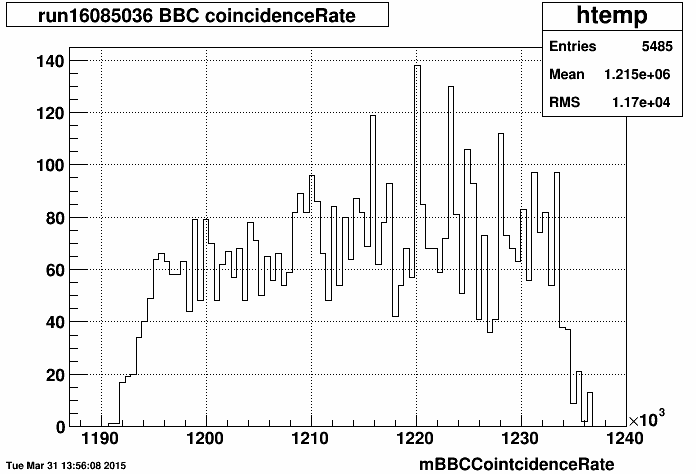

12. BBC coincidence rate
![]() |
![]() |
![]() |
![]() |
