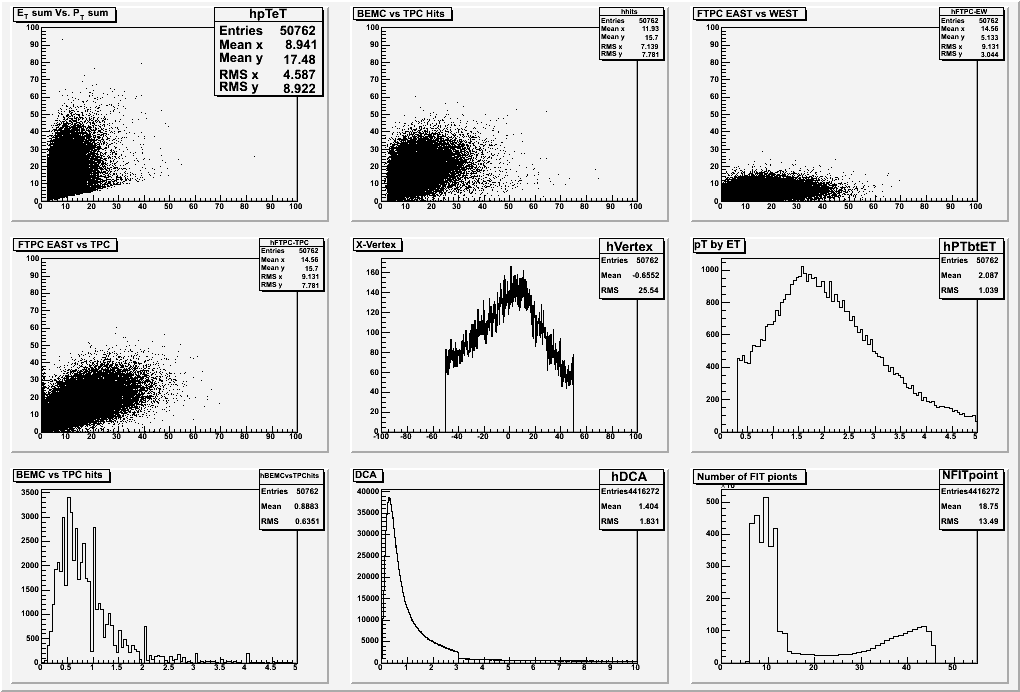

Some basic plots : Run 3 (dAu) :  HT-2  trigger threshod > 4.5GeV (Id: 2202)

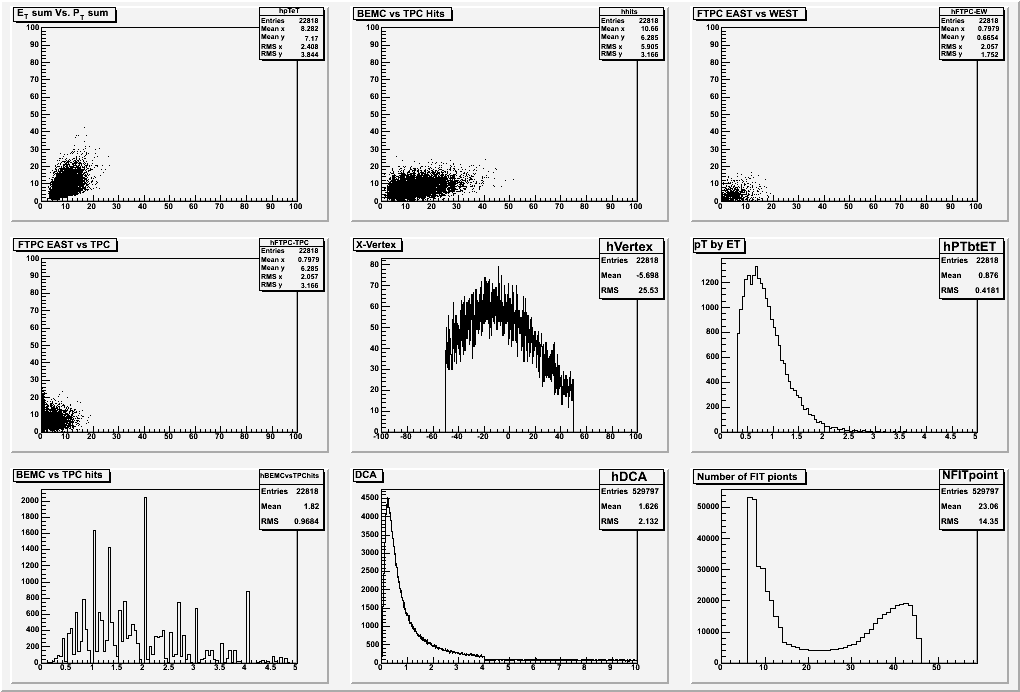

Some basic plots : Run  6(pp) :  HT-2  trigger threshod > 5GeV (Id: 117211)

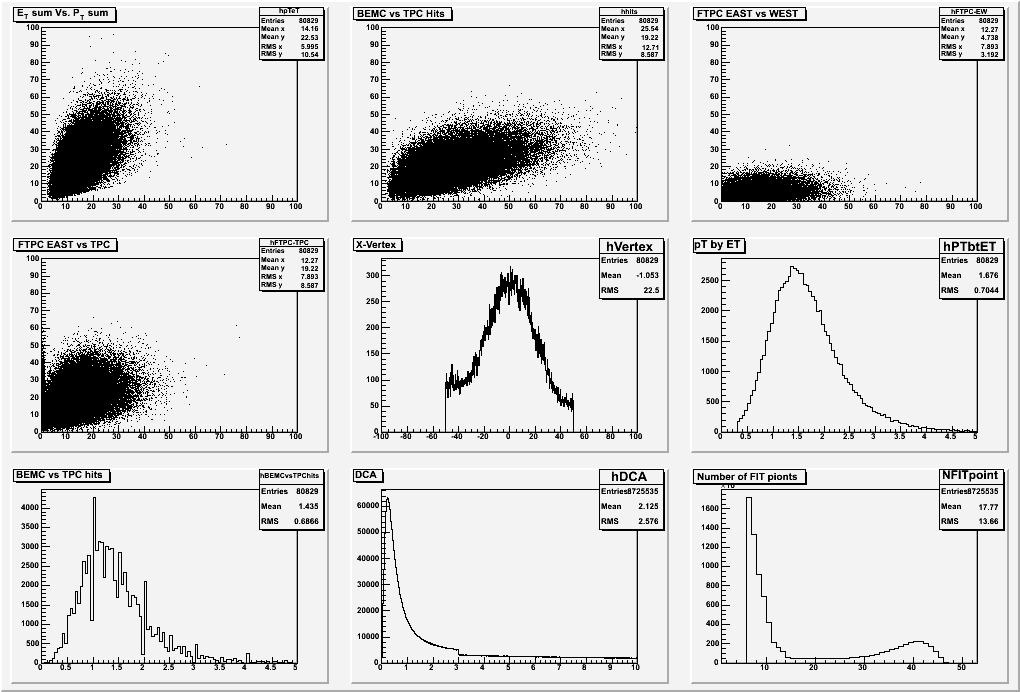

Some basic plots : Run 8 (dAu) :  HT-2  trigger threshod > 4.3 GeV  (Id: 210521)

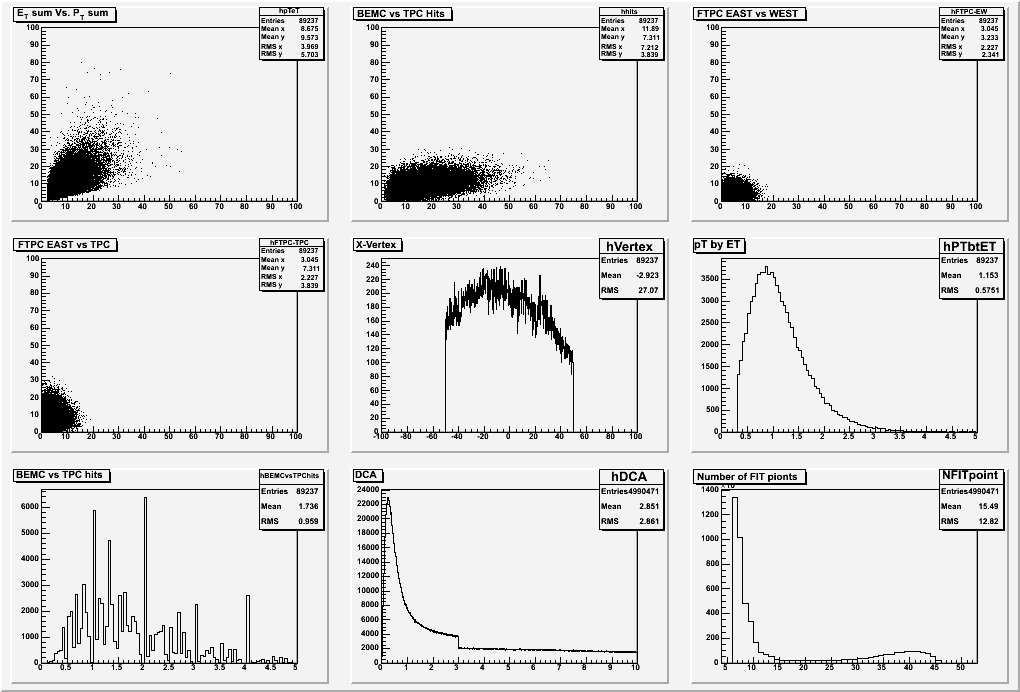

Some basic plots : Run 8 (pp) :  HT-2  trigger threshod > 4.3 GeV/c (Id: 2202)







For Charge Tracks cuts for pp dAu (Run 6 3) with dca <1,  no. of fit pionts > 20,  |eta |<1

For Charge Tracks cuts for pp dAu (Run 8) with dca <1,  no. of fit pionts > 15,  |eta |<1

BEMC clustes with no charge tracks falling on maximum tower  of the cluster is being considered.

E_T of the clusters is taken within 6.5-18.5 GeV/v

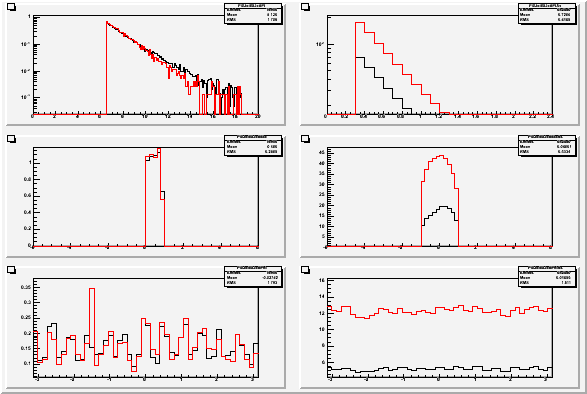

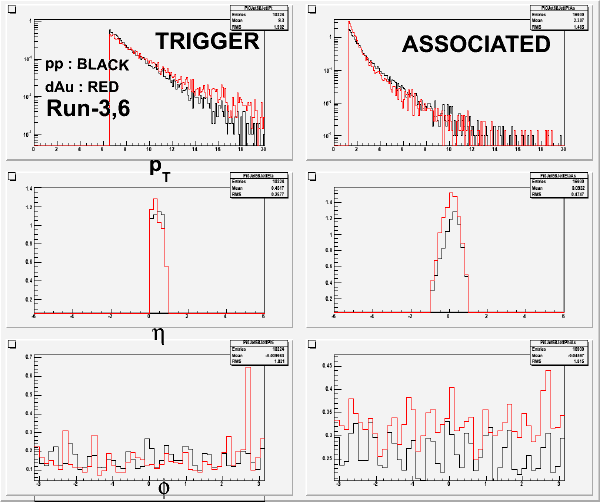

pT eta and phi ditributions of the HT-clusrers and the TPC tracks, a comparison for pp and dAu is given:







Run 8 (pp dAu)

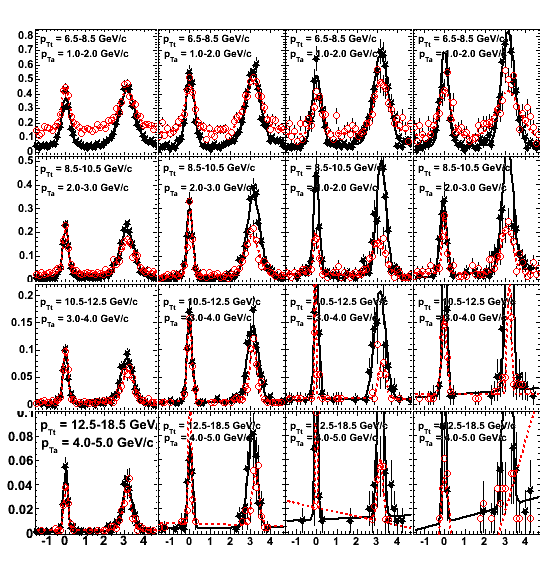

Correlation plots for Run3 Run 6 (pp dAu)

dAu : RED

pp :Black

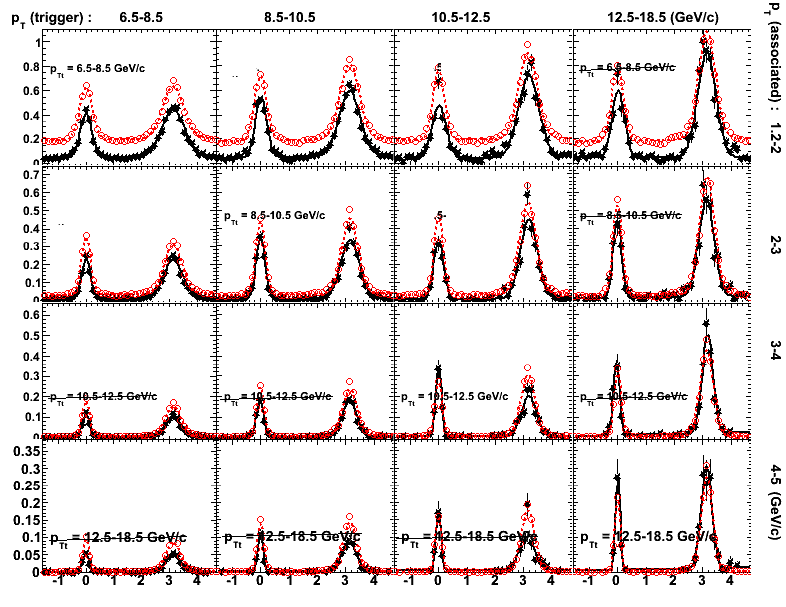

 Correlation plots for  Run 8 (pp dAu)





The main difference appears in the correlation plots id the yield of pp and dAu.

Run-8-dAu is higher compared to Run-8-pp

Run-3 dAu is lower compared to Run-6-pp



We have used HT-2 only having almost the same trigger theshold.
