Update 11.27.2018 -- Run 9 pp: Data Vs. Embedding Comparison

Updated on Wed, 2019-02-13 15:42. Originally created by dmawxc on 2018-11-28 17:37.

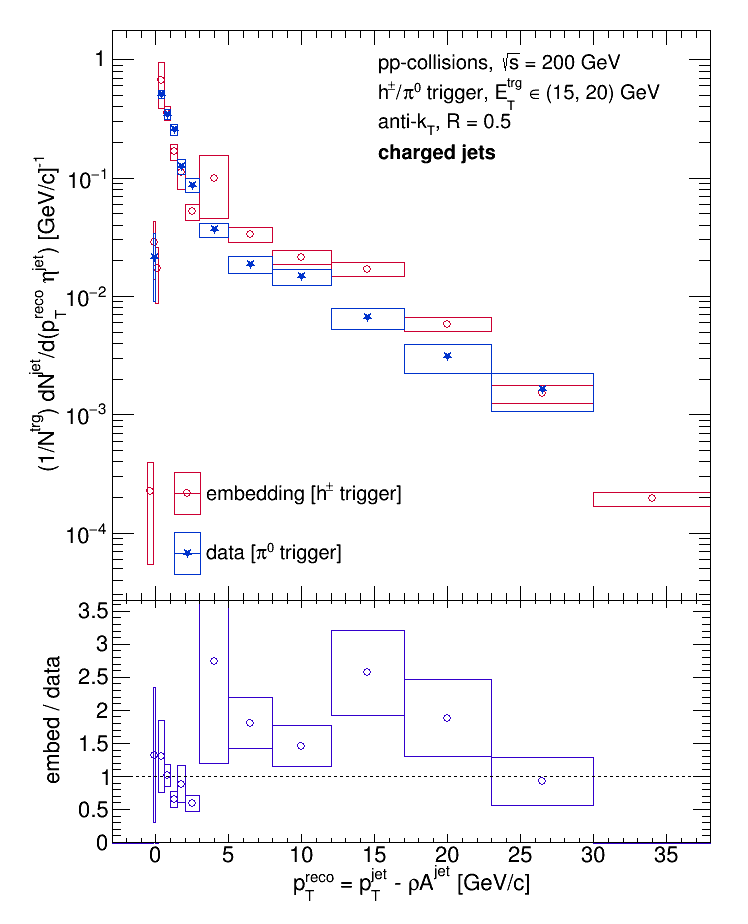

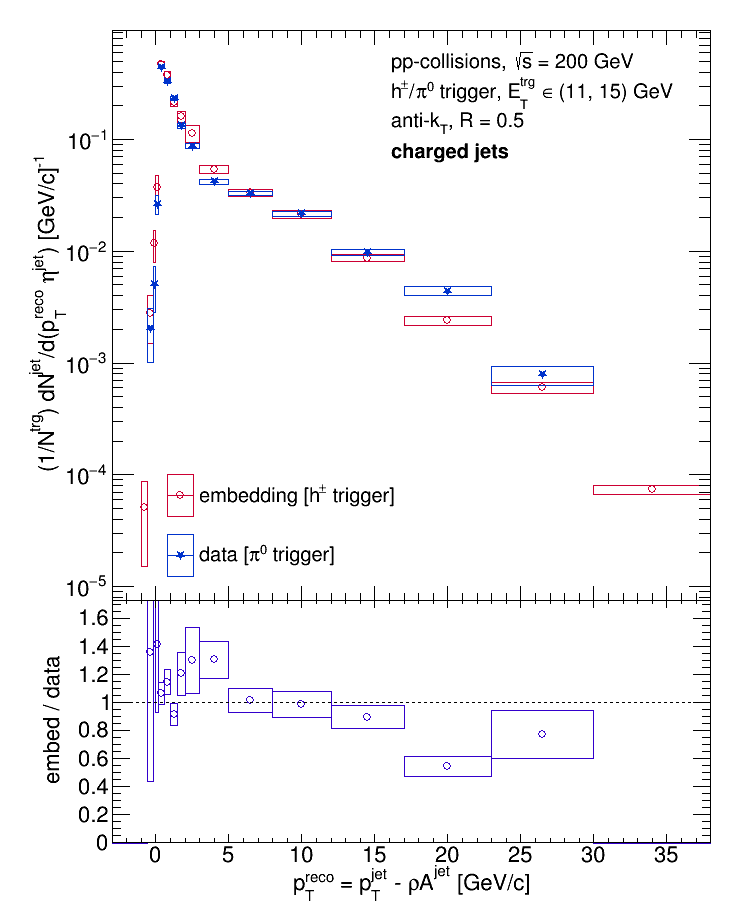

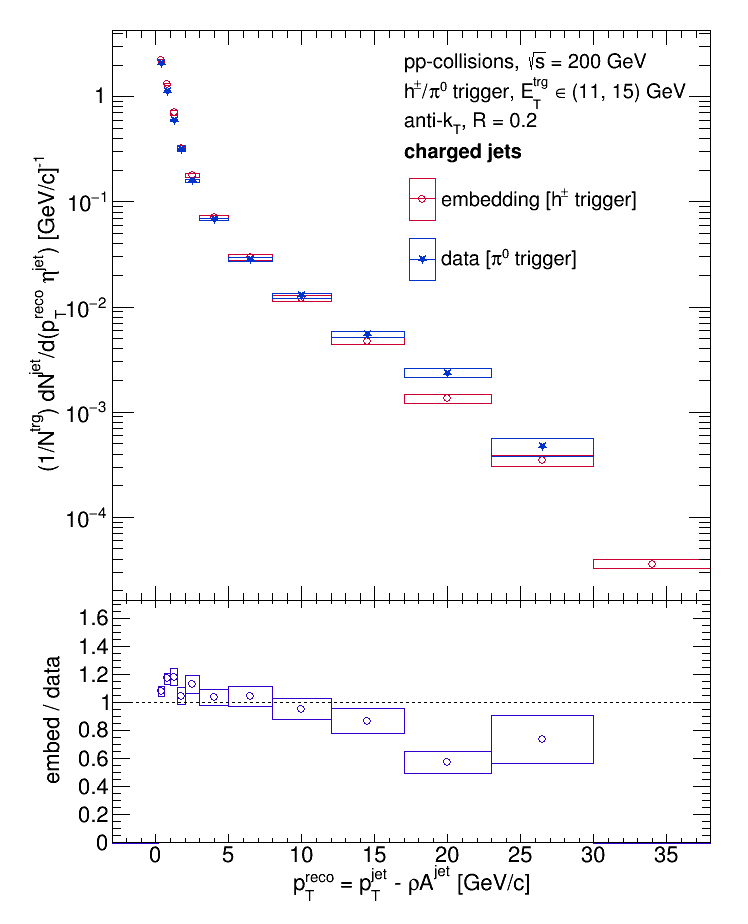

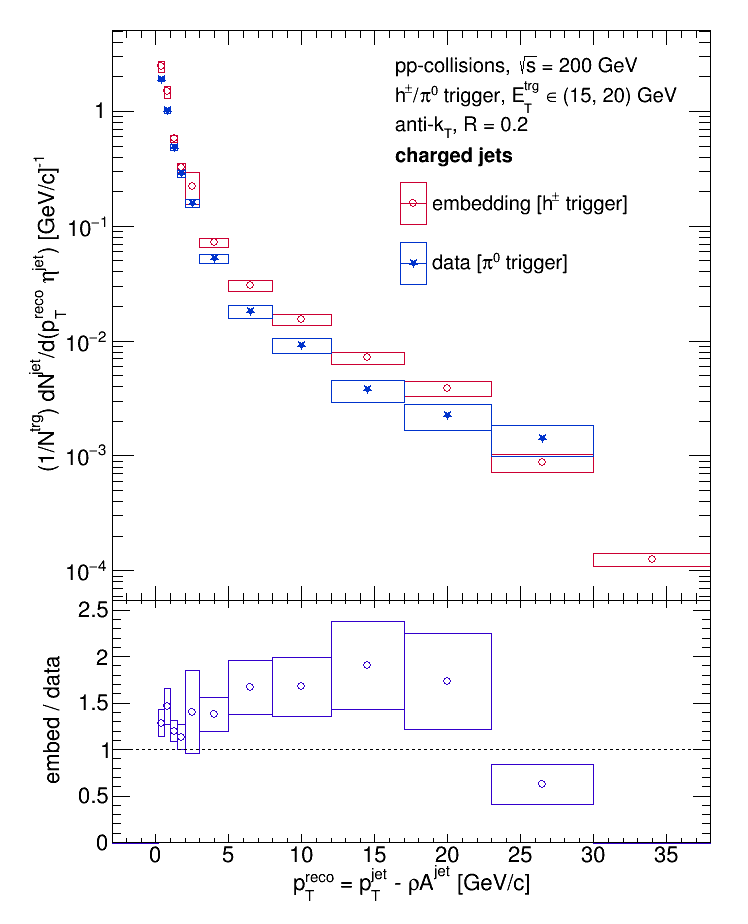

Just as a check, below I compare the detector-level charged-hadron-triggered recoil jet spectra (charged, R = 0.2 and 0.5) from the Run 9 dijet embedding to our Run 9 pp pi0-triggered data. The embedding agrees with our data quite well until the eTtrg = 15 - 20 GeV bin, interestingly...

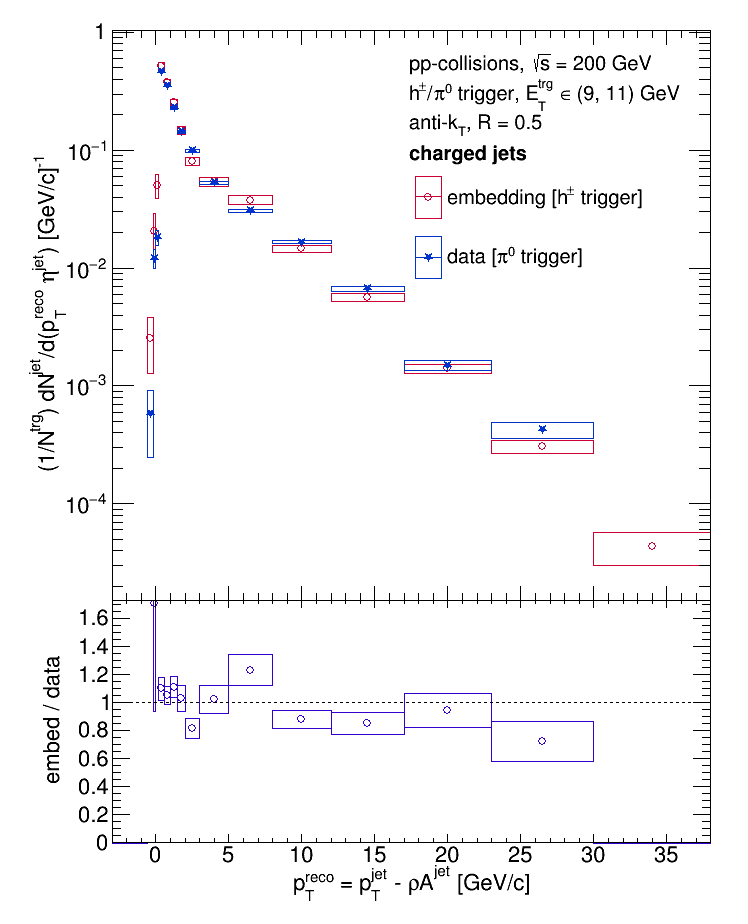

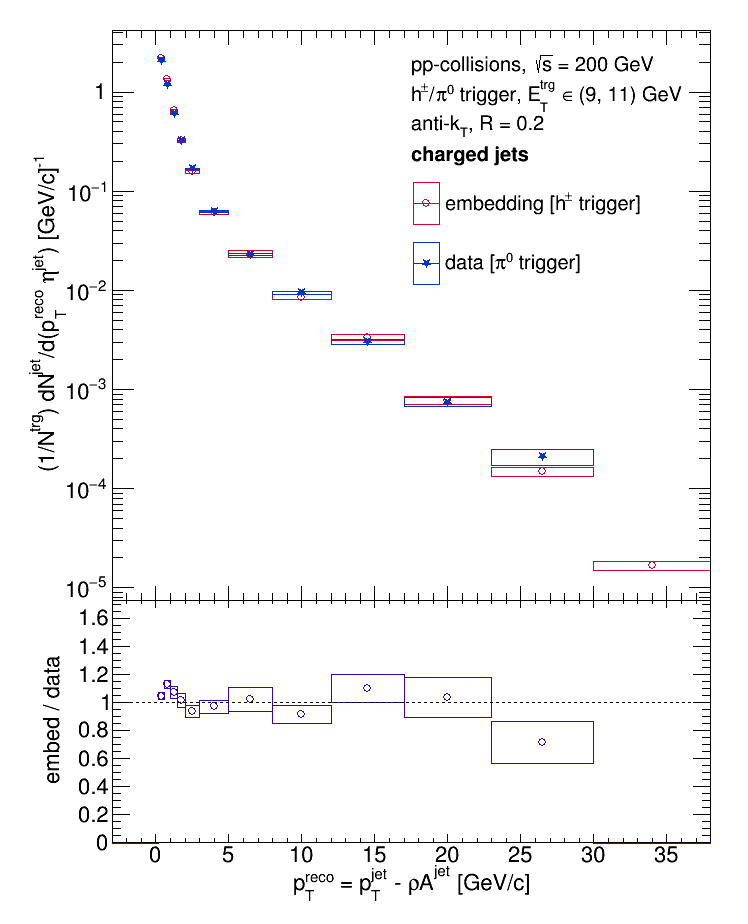

eTtrg = 9 - 11 GeV:
