Update 07.31.2018 -- Run 9 pp: Systematic Errors, Prior (R = 0.5)

Updated on Tue, 2019-02-19 10:44. Originally created by dmawxc on 2018-07-31 15:30.

After unfolding the charged R = 0.5 jets using a different binning (see link below), I checked the systematic error due the choice of prior.

I followed the same process as what I did for the R = 0.2 jets:

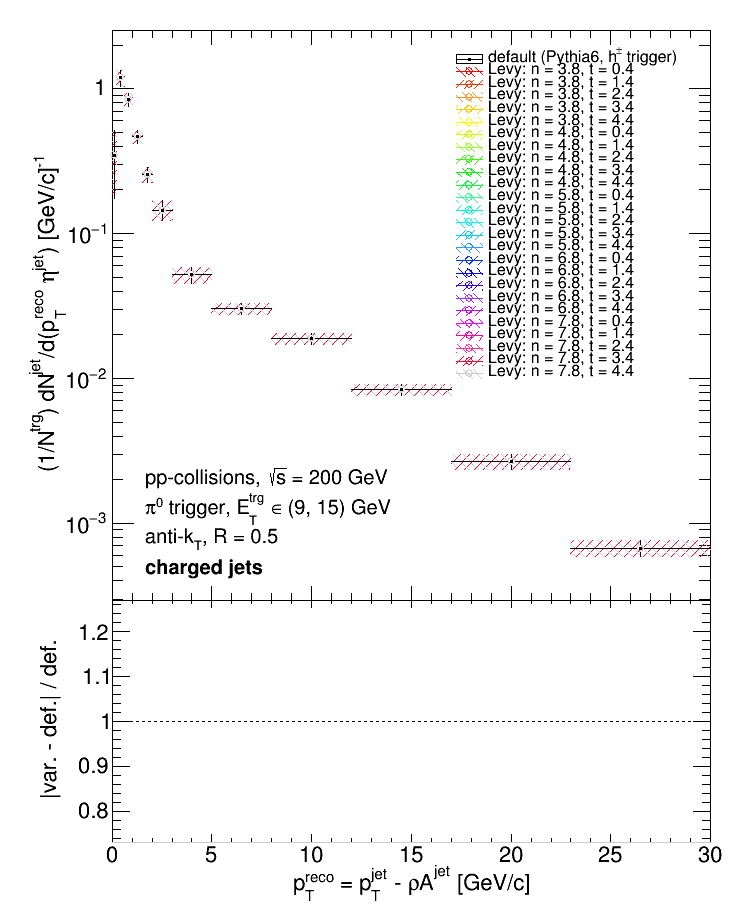

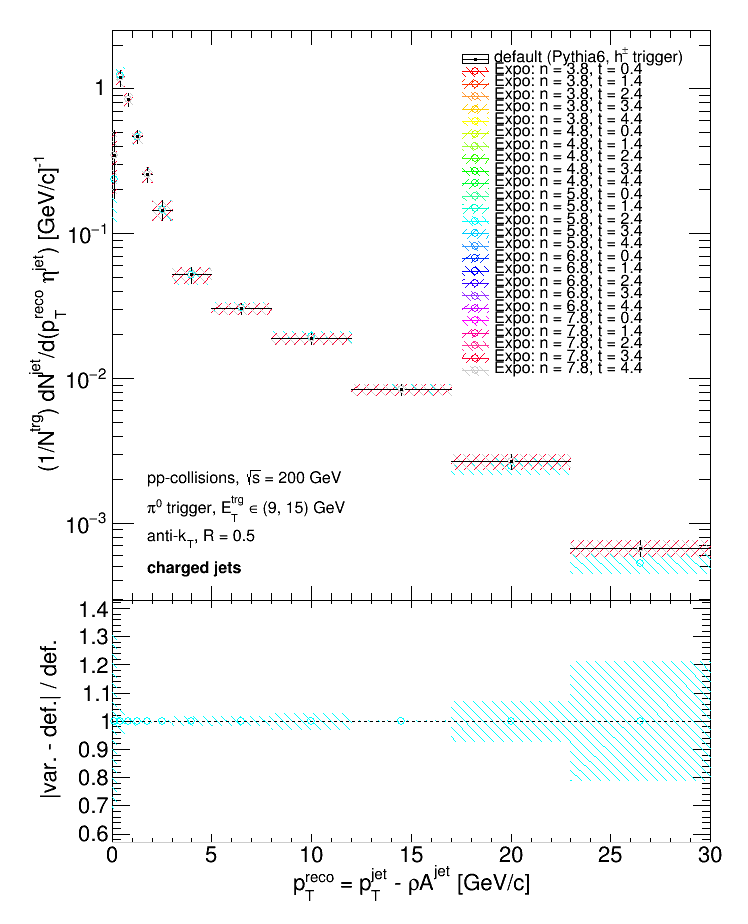

So first, the systematics errors:

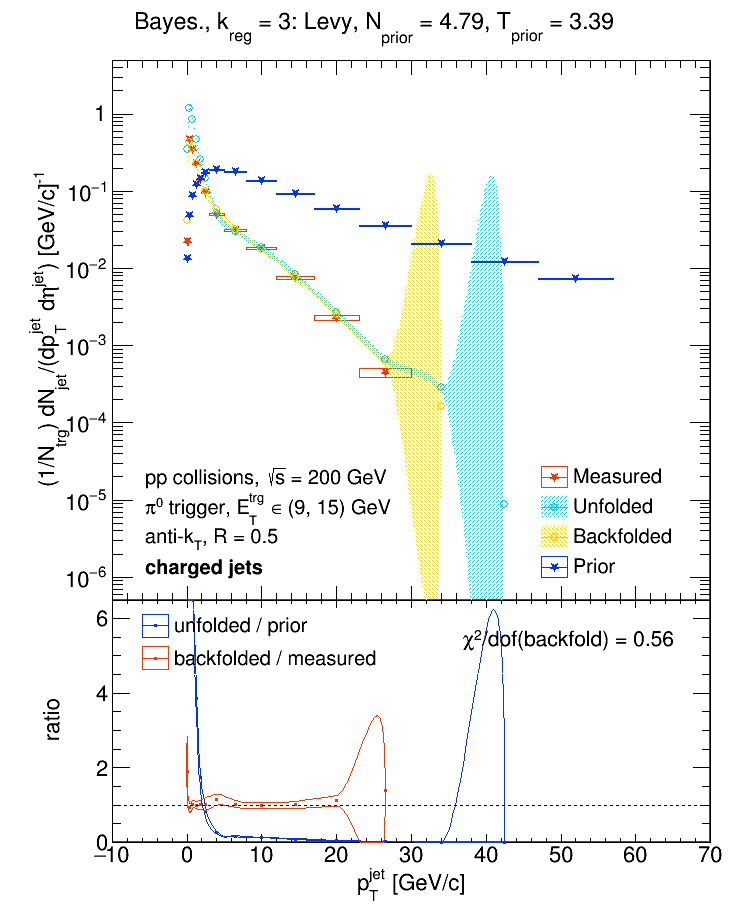

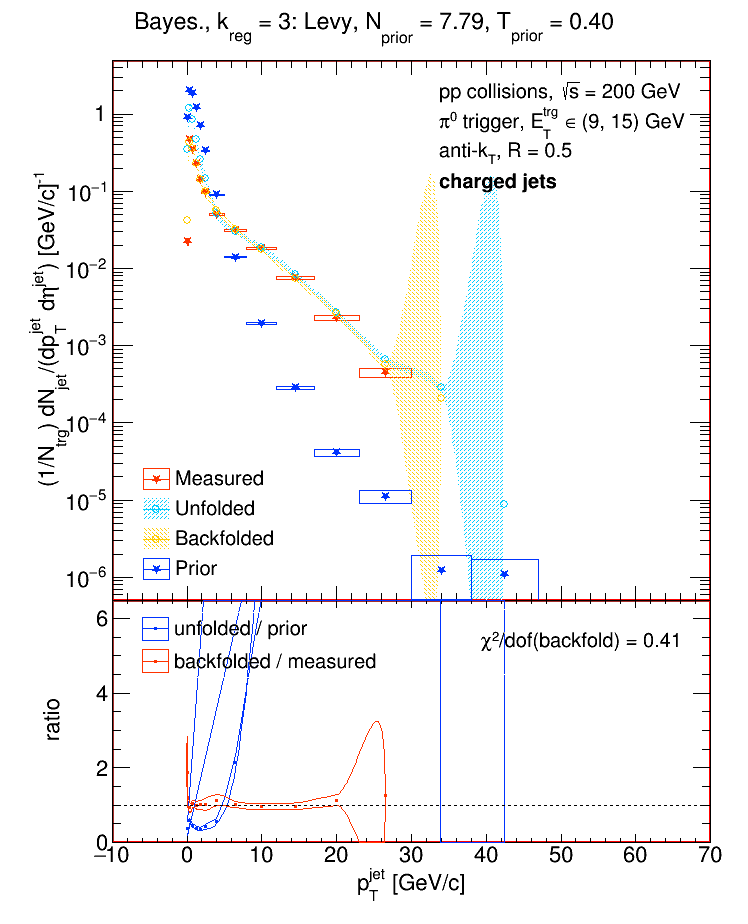

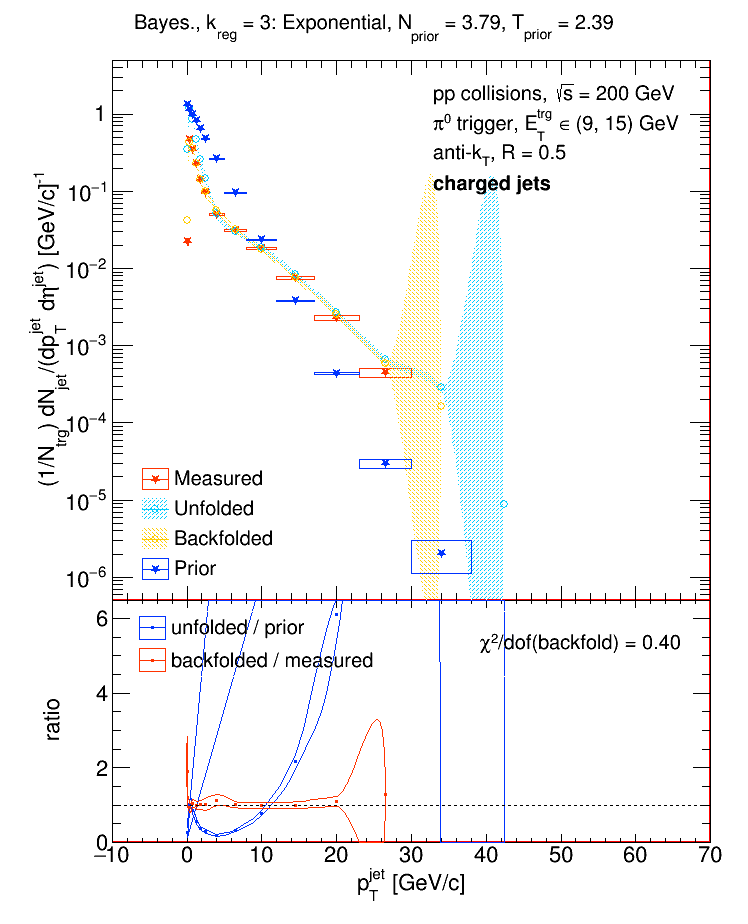

And here are a few example priors:

The exploding error bars on all of the last points are just ROOT misbehaving (as is the weird things going on with the fills in the ratios).
